Brand: Panduit
|
SKU:
10044126

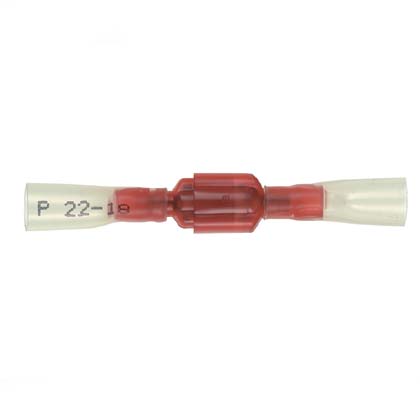

Panduit DNH18-250FIM-Q | Loose Piece Disconnect | UPC - 07498381826
Regular price
$64.22
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNH18-250FIM-Q | Loose Piece Disconnect | UPC - 07498381826
Regular price
$64.22
Unit price
Description
Description
Panduit Pan-Term Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DNH-FIM, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, 600 VAC, 9/32 in L Wire Strip, 0.133 in Dia Maximum Insulation, 300 deg F Shrink, 5/16 in Mounting, 230 deg F, Brass, Red, Nickel Plated, 1.5 in L x 0.41 in W
- Male tab couples with (all 0.25 x 0.032 in) female disconnects
- Insulation support helps to prevent wire damage in bending applications
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Maximum insulation temperature 221 deg F
- Vinyl barrel insulated
Panduit Panduit DNH18-250FIM-Q | Loose Piece Disconnect | UPC - 07498381826 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Heat Shrink - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel |
| Color Code | Red |
| Barrel Type | Sleeved Barrel |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.13 |
| Insulation Diameter (mm) | 3.4 |
| Maximum Operating Temperature (°C) | 105 |
Panduit Panduit DNH18-250FIM-Q | Loose Piece Disconnect | UPC - 07498381826 Environmental Information
| Panduit's RoHS Statement | Download and View |
