Brand: Panduit
|
SKU:
311405

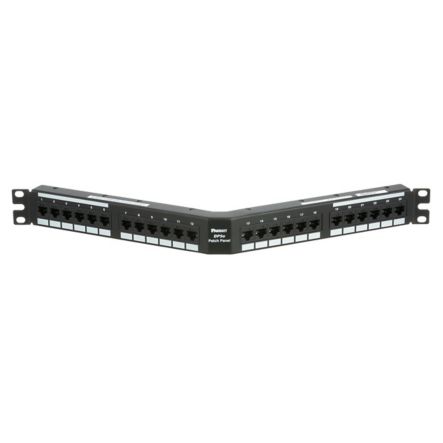

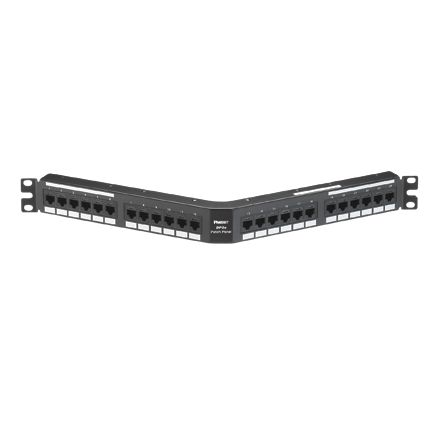

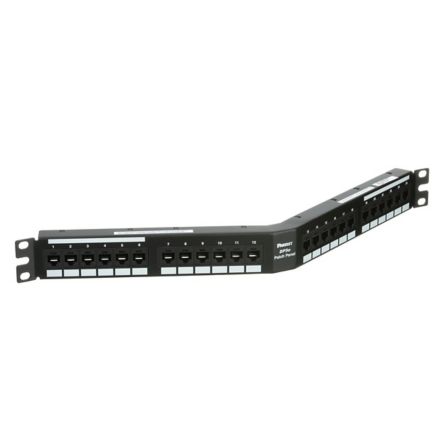

Panduit DPA245E88TGY | DP5e Angled Cat 5e Punchdown Patch Panel 24 Ports, 1RU, Black
Regular price
$448.18
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DPA245E88TGY | DP5e Angled Cat 5e Punchdown Patch Panel 24 ...
Regular price
$448.18
Unit price
Description
Description
Panduit DPA245E88TGY | DP5e Angled Cat 5e Punchdown Patch Panel 24 Ports, 1RU, Black
The DataPatch 24-port Category 5e Angled Punchdown Patch Panel in Black. 1RU.
Panduit - DPA245E88TGY - Features
- Each port is marked with quality control number for future traceability
- Confidence that each jack module will deliver the critical electrical performance requirements
- Can be clearly identified with optional labels and icons for port identification
- Allows higher density installations by easily routing the patch cords to each side of the panel eliminating the need for horizontal cable management
Specifications
Specifications
Panduit - DPA245E88TGY - Product Categories
- Copper Systems
- Populated Patch Panels
Panduit - DPA245E88TGY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DPA245E88TGY |
| Item Description | DP5e Angled Cat 5e Punchdown Patch Panel 24 Ports, 1RU, Black |
| Product Type | Punchdown |
| Termination Style | Punchdown |
| Patch Panel Style | Angled |
| Performance Level | Category 5e |
| Material | Steel |
| Wiring Scheme | T568A/T568B |
| Number of Ports | 24 |
| Number of Rack Units | 1 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Sub Brand | Pan-Net |
| Overall Depth (In.) | 4.75 |
| Overall Depth (mm) | 120.6 |
| Overall Height (In.) | 1.25 |
| Overall Height (mm) | 31.8 |
| Identification Type | Adhesive Label |
| Color | Black |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies 1 to 100 MHz. Meets ANSI/TIA-968-A requirements; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4 for PoE applications up to 100 W, UL 1863 approved, RoHS Compliant |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Overall Length (In.) | 4.75 |
| Overall Length (mm) | 120.6 |
Panduit - DPA245E88TGY - Package Information
| UPC | 07498303714 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2734 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 2.7344 |
