Panduit DPF10-250FI-D | Loose Piece Disconnect | UPC - 07498320337
Regular price
$478.51
Unit price
Description
Description

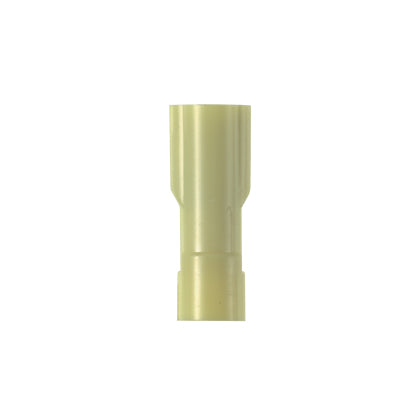

Panduit DiscoGrip Female Disconnect, Loose Piece Vibration Resistant, Series: DPF-FIB, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, 3/8 in L Wire Strip, 0.218 in Dia Maximum Nylon Insulation, 221 deg F, Brass, Yellow, Tin Plated, 0.95 in L x 0.36 in W x 0.27 in H, Insulated
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DPF10-250FI-D | Loose Piece Disconnect | UPC - 07498320337 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Premium Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Yellow |
| Barrel Type | Sleeved Barrel |
| Flammability Rating | V2 |
| Insulation Diameter (In.) | 0.22 |
| Insulation Diameter (mm) | 5.6 |
| Maximum Operating Temperature (°C) | 105 |
Panduit Panduit DPF10-250FI-D | Loose Piece Disconnect | UPC - 07498320337 Environmental Information
| Panduit's RoHS Statement | Download and View |
