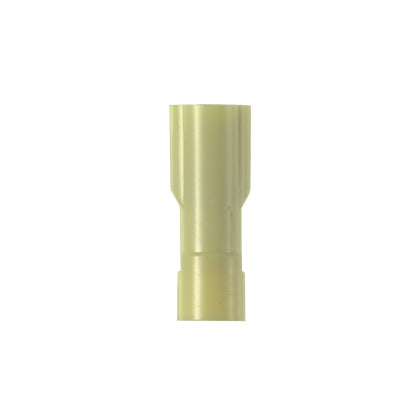

Panduit DPF10-250FIB-D | Loose Piece Disconnect | UPC - 07498374055
Regular price
$414.50
Unit price
Description
Description
Panduit DiscoGrip Female Disconnect, Vibration Resistant, Series: DPF-FIB, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.218 in Dia Maximum Premium Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.96 in L x 0.35 in W x 0.23 in H, Fully Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DPF10-250FIB-D Key Specs
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit DPF10-250FIB-D Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - P18-6RHT6-C Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #16-14 Barrel Non-Insulated Ring Tongue, High Temperature, 650 F | Download and View |
