Panduit DPF14-250FIB-3K | Disconnects on a Reel | UPC - 07498382373
Regular price
$1,368.05
Unit price
Description
Description

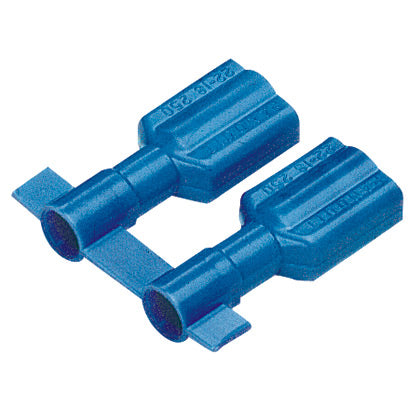

Panduit Reel Smart Female Disconnect, Series: DPF-FIB, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, Premium Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.84 in L x 0.35 in W x 0.22 in H, Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DPF14-250FIB-3K | Disconnects on a Reel | UPC - 07498382373 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Premium Nylon |
| Insulation Type | Fully Insulated |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
Panduit Panduit DPF14-250FIB-3K | Disconnects on a Reel | UPC - 07498382373 Environmental Information
| Panduit's RoHS Statement | Download and View |
