Panduit DPF14-250FIMB-K | Reel Smart Dpf14-250Fimb-K Disconnects On A Reel

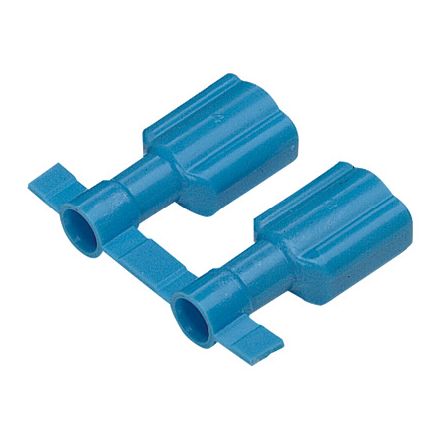

The vibration resistant male disconnect is made of brass and is nickel-plated. It is fully insulated in blue premium nylon oversized housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.92" (23.4 mm) long and 0.46" (11.7 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 1000.
Specifications
Specifications
Panduit - DPF14-250FIMB-K - Product Categories
- Wire Termination
- Disconnects
Panduit - DPF14-250FIMB-K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DPF14-250FIMB-K |
| Item Description | Reel Smart Dpf14-250Fimb-K Disconnects On A Reel |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Premium Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-2/UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4 |
| Overall Length (In.) | 0.92 |
| Overall Length (mm) | 23.4 |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Reel |
| Product Type | Disconnect |
| For Use With | Crimp press with CA9 (CD9-11B) or CA-800EZ (CD-800-11) applicator |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief • Fully insulated design provides protection from electrical shorts • Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-2, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
