Panduit DPF18-206FIBR-C | Loose Piece Disconnect | UPC - 07498308935

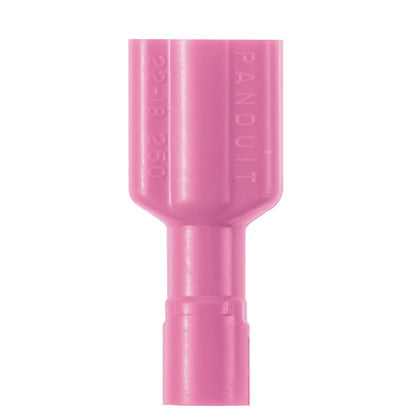

The vibration resistant DiscoGrip female disconnect is made of brass and is tin-plated. It is fully insulated with restricted insulation in red premium nylon housing. It has a tab size of 0.205/0.187 x 0.02" (5.2/4.7 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

---

Panduit Panduit DPF18-206FIBR-C | Loose Piece Disconnect | UPC - 07498308935 Key Specs

Disconnect Type	Female Disconnect-Right Angle
Insulation Material	Premium Nylon - Fully Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.21
Tab Size (mm)	5.2
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Red
Flammability Rating	V2
Insulation Diameter (In.)	0.11
Insulation Diameter (mm)	2.7
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
