Brand: Panduit
|
SKU:
10044160

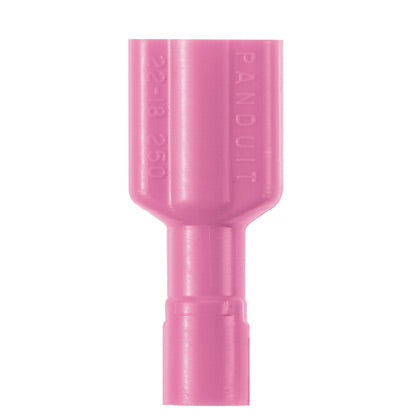

Panduit DPF18-250FIB-M | Loose Piece Disconnect | UPC - 07498320393
Regular price
$394.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DPF18-250FIB-M | Loose Piece Disconnect | UPC - 07498320393
Regular price
$394.15
Unit price
Description
Description
Panduit DiscoGrip Female Disconnect, Vibration Resistant, Series: DPF-FIB, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.133 in Dia Maximum Premium Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.84 in L x 0.35 in W x 0.22 in H, Fully Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DPF18-250FIB-M | Loose Piece Disconnect | UPC - 07498320393 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Premium Nylon |
| Insulation Type | Fully Insulated |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
Panduit Panduit DPF18-250FIB-M | Loose Piece Disconnect | UPC - 07498320393 Environmental Information
| Panduit's RoHS Statement | Download and View |
