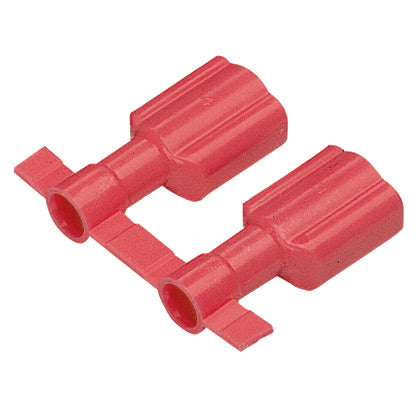

Panduit DPF18-250FIM-2K | Disconnects on a Reel | UPC - 07498320329
Regular price
$1,456.94
Unit price
Description
Description
Panduit Reel Smart Male Disconnect, Vibration Resistant, Series: DPF-FIM, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, 600 VAC, 9/32 in L Wire Strip, 0.133 in Dia Insulation, V2 Flammability Rating, 221 deg F, Brass, Red, Nickel Plated, 0.9 in L x 0.41 in W
- Male tab couples with (all 0.25 x 0.032 in) female disconnects
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Maximum insulation temperature 221 deg F
- Nylon barrel insulated
Panduit Panduit DPF18-250FIM-2K | Disconnects on a Reel | UPC - 07498320329 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Premium Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel |
| Color Code | Red |
| Flammability Rating | V2 |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit Panduit DPF18-250FIM-2K | Disconnects on a Reel | UPC - 07498320329 Environmental Information
| Panduit's RoHS Statement | Download and View |
