Brand: Panduit
|
SKU:
10044163

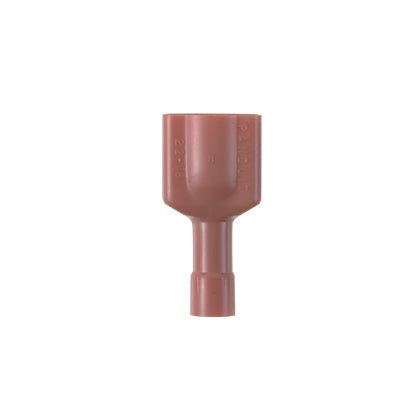

Panduit DPF18-250FIMB-D | Loose Piece Disconnect | UPC - 07498320348
Regular price
$343.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DPF18-250FIMB-D | Loose Piece Disconnect | UPC - 07498320348
Regular price
$343.29
Unit price
Description
Description
Panduit DiscoGrip Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DPF-FIMB, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, 600 VAC, 9/32 in L Wire Strip, 0.133 in Dia Maximum Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Nickel Plated, 0.92 in L x 0.46 in W
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Coupler, male and female parts sold separately
- Maximum insulation temperature 221 deg F
- UL flammability UL 94V-2/HB, maximum insulation temperature 221 deg F (105 deg C)
- UL and CSA rated up to 600 VAC per UL 310
- Nylon barrel insulated
Panduit Panduit DPF18-250FIMB-D | Loose Piece Disconnect | UPC - 07498320348 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Premium Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel |
| Color Code | Red |
| Flammability Rating | V2 |
| Insulation Diameter (In.) | 0.13 |
| Insulation Diameter (mm) | 3.4 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit Panduit DPF18-250FIMB-D | Loose Piece Disconnect | UPC - 07498320348 Environmental Information
| Panduit's RoHS Statement | Download and View |
