Brand: Panduit
|
SKU:
10044167
Panduit DPFR18205FIB-KD | Disconnects on a Reel | UPC - 07498303015
Regular price
$1,162.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DPFR18205FIB-KD | Disconnects on a Reel | UPC - 07498303015
Regular price
$1,162.07
Unit price
Description
Description

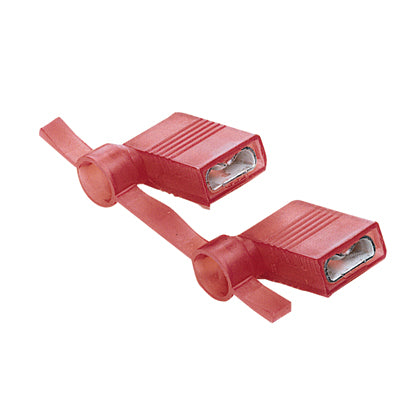

Panduit Reel Smart Female Disconnect, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 to 0.205 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, Crimp Terminal, 600 VAC, 11/32 in Wire Strip, 0.18 in Dia Maximum Premium Nylon Insulation, 221 deg F, Brass, Red, Tin Plated, 0.57 in L x 0.37 in W x 0.6 in H, Fully Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Heat shrink sleeving additional level of strain relief for the wire
Panduit Panduit DPFR18205FIB-KD | Disconnects on a Reel | UPC - 07498303015 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Premium Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Red |
| Flammability Rating | V2 |
| Insulation Diameter (In.) | 0.18 |
| Insulation Diameter (mm) | 4.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit Panduit DPFR18205FIB-KD | Disconnects on a Reel | UPC - 07498303015 Environmental Information
| Panduit's RoHS Statement | Download and View |
