Panduit DR10-250-D | Pan-Term Disconnect, Bare, 10-12 AWG, 0.25&quo...
Description
Description
Tackle tight spaces with secure and tool-free connections, the right-angle female disconnect handles high voltages for electrical projects.

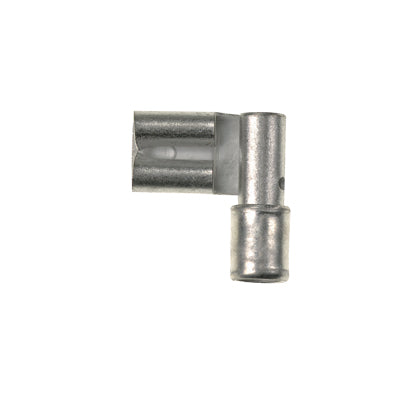

Female Disconnect, right angle, non-insulated, sleeved barrel, 12 - 10 AWG, .250 x .032 tab size.
Panduit Pan-Term Female Disconnect, Right Angle Vibration Resistant, Series: DR Series, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.57 in D, Standard Barrel Configuration, 302 deg F, Brass, Metallic, Tin Plated, 0.61 in L x 0.3 in W x 0.12 in H, Non-Insulated
Panduit - DR10-250-D - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Right angle design for use in limited space applications
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Maximum recommended operating temperature 302F (150C)
Specifications
Specifications
Panduit - DR10-250-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DR10-250-D |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Overall Length (In.) | 0.61 |
| UPC | 07498382756 |
