Brand: Panduit
|
SKU:
10044172

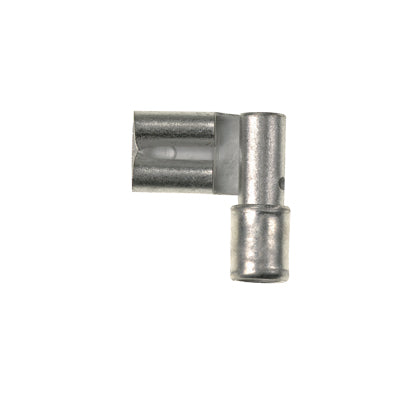

Panduit DR18-205-C | Loose Piece Disconnect | UPC - 07498382743
Regular price
$103.30
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DR18-205-C | Loose Piece Disconnect | UPC - 07498382743
Regular price
$103.30
Unit price
Description
Description
Panduit PAN-TERM Female Disconnect, Vibration-Resistant, Series: DR Series, Stranded Conductor, 22 to 18 AWG Conductor, 0.187/0.205 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, Standard Barrel Configuration, 302 deg F, Brass, Metallic, TiN Plated, 0.54 in L x 0.25 in W x 0.53 in H Dimensions, Non-Insulated
- Right angle design for use in limited space applications
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit DR18-205-C | Loose Piece Disconnect | UPC - 07498382743 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.21 |
| Tab Size (mm) | 5.2 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Metallic |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
Panduit Panduit DR18-205-C | Loose Piece Disconnect | UPC - 07498382743 Environmental Information
| Panduit's RoHS Statement | Download and View |
