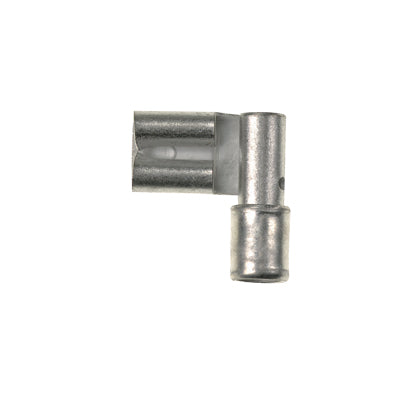

Panduit DR18-206-C | Loose Piece Disconnect | UPC - 07498382745

The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.205/0.187 x 0.02" (5.2/4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.54" (13.7 mm) long and 0.25" (6.4 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 100.

---

Panduit Panduit DR18-206-C | Loose Piece Disconnect | UPC - 07498382745 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Non-Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.21
Tab Size (mm)	5.2
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Metallic
Barrel Type	Sleeved Barrel
Maximum Operating Temperature (°C)	150
Maximum Operating Temperature (°F)	302
Sub Brand	Pan-Term
