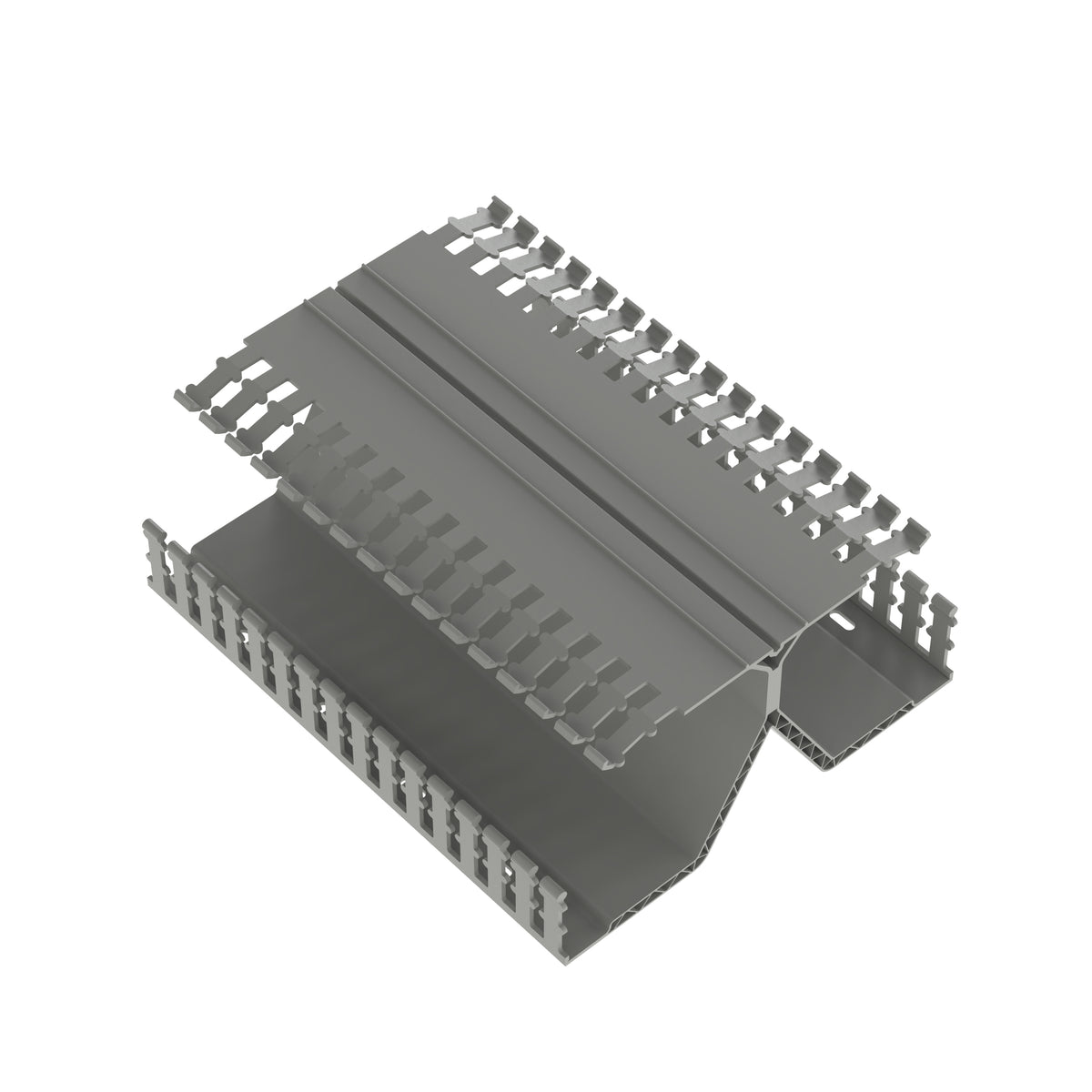

Panduit DRD44LG6 | PanelMax DIN Rail Duct, Lt Gray, PVC, 4.12"x8.23", PK6
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DRD44LG6 | PanelMax DIN Rail Duct, Lt Gray, PVC, 4.12"...
Description
Description
Save time and space while improving access and organization with our wiring duct, streamlines control panel design with integrated wire management and DIN rail mounting.
PanelMax DIN-rail wiring duct is an innovative wire management solution that maximizes space utilization within industrial enclosures for flexibility in panel layout and reduced material and installation costs. The unique design raises components from the panel surface for easier access and faster terminations. DIN-rail wiring duct is compatible with common DIN-rail and DIN mount components to satisfy a wide range of applications.
Panduit Panduct PanelMax Wiring Duct, Series: DRD, 8-1/4 in Width, 4.12 in Depth, 6 ft Length, Slotted Slot, 0.31 in Slot, DIN Rail Mount, Lead-Free PVC, Light Gray
Panduit - DRD44LG6 - Features
- Space saving design positions DIN-rail and components off the panel directly above an integrated wire management channel for up to a 30% smaller footprint for duct and components
- DIN-rail and DIN component compatible with standard 35 mm or 15 mm rails and many DIN-rail mount components for design flexibility
- Integrated DIN-rail fastening slot allows the DIN-rail to mount directly to product with plastic thread cutting screws for up to 40% faster duct and rail installation and reduced labor costs
- Hinged and flexible cover ensures panel integrity, safety and aesthetics
- Platform slots (horizontal) manage wire from channel-mounted components, outer sidewall slots (vertical) manage wire from adjacent panel mounted components
- Channel pass through slots allows wires to transition internally between channels to ease wire connections to either side of components mounted on the same rail, minimizing wire length and reducing material cost
- Unique finger and slot progression for optimal wire management and aesthetics
Specifications
Specifications
Panduit - DRD44LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DRD44LG6 |
| Note | 2-Channel Wiring duct with a hinged and flexible cover that allows you to mount DIN Rail and components on top of the duct to maximize space. Up to 30% panel Space savings, up to 25% material cost savings, and up to 50% faster installation. Pass thru holes to shorten the wire path |
| Duct Dimensions (In.) | 8.23W x 4.12H |
| Product Type | Wiring Duct Base with Cover |
| Application | DIN Rail Duct Creates Valuable Panel Space Savings, Providing Easier Installation and Maintenance, and Improving Reliability |
| Color | Light Gray |
| Cover Part Number | DRDC4LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base, Covers, DIN Rail Fasteners |
| Standards Met | RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | DIN Rail Wiring Duct |
| Wiring Duct Type | DRD |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 8.23 |
| Overall Width (mm) | 209 |
| Overall Height (In.) | 4.12 |
| Overall Height (mm) | 104.8 |
| UPC | 07498311710 |
Panduit - DRD44LG6 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - DRD44LG6 - Videos
| Panduit DRD44LG6 Video 1 | Click to View |
|---|
