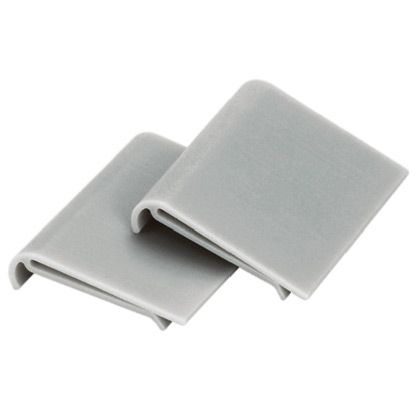

Panduit DRDCS3-X | 3" Corner Strip for DRD, PVC, 10pcs
Description
Description
The Panduct PanelMax 3" corner strip in light gray PVC material is used with the DRD33 DIN rail wiring duct. It comes in a package of 10 pieces.
PanelMax DIN-rail wiring duct is an innovative wire management solution that maximizes space utilization within industrial enclosures for flexibility in panel layout and reduced material and installation costs. The unique design raises components from the panel surface for easier access and faster terminations. DIN-rail wiring duct is compatible with common DIN-rail and DIN mount components 1 to satisfy a wide range of applications.
Panduit PanelMax Wiring Duct Corner Strip, Type DRD Slotted, 3 in, For Use With: Panduct PanelMax DRD33 DIN Rail Wiring Duct, DIN Rail Mount, PVC, Light Gray, 2.27 in L x 3 in H
Panduit - DRDCS3-X - Features
- UL recognized continuous use temperature 122 deg F
- Hinged cover remains attached during maintenance and upgrades preventing lost covers, ensuring panel integrity, safety and aesthetics, L-shaped cover acts as ledge to aid wire installation for ease of use
- Slotted platform (horizontal) manage the wire from channel mounted components, outer sidewall slots (vertical) manage wire from adjacent panel mounted components, unique finger and slot progression for optimal wire management and aesthetics
- Channel pass through slots allows wires to transition internally between channels to ease wire connections to either side of components mounted on the same rail minimizing wire length and reducing material cost
Specifications
Specifications
Panduit - DRDCS3-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DRDCS3-X |
| Product Type | Wiring Duct Corner Strip |
| Sub Brand | PanelMax |
| Application | Corner Strip for DIN Rail Wiring Duct |
| Color | Light Gray |
| Flammability Rating | UL94 V-0 |
| Material | PVC |
| Standards Met | CE Compliant, CSA Certified, RoHS Compliant |
| Compatible Duct Width (mm) | 76.2 |
| UPC | 07498311807 |
Panduit - DRDCS3-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8538.90.6000 |
