Panduit DRJ6X88TGBL | DP6A PLUS Cat 6A Punchdown Replacement Module...
Regular price
$32.63
Unit price
Brand: Panduit
|
SKU:
521597
Regular price
$32.63
Unit price
Description
Description

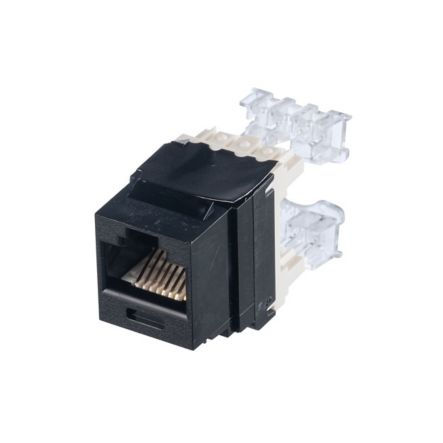

Panduit DRJ6X88TGBL | DP6A PLUS Cat 6A Punchdown Replacement Module, Black
The RJ45, 8-position, 8-wire replacement port for DataPatch Category 6A Punchdown Patch Panels. Includes clear wire retention cap.
Specifications
Specifications
Panduit - DRJ6X88TGBL - Product Categories
- Copper Systems
- Populated Patch Panels
Panduit - DRJ6X88TGBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DRJ6X88TGBL |
| Item Description | DP6A PLUS Cat 6A Punchdown Replacement Module, Black |
| Product Type | Replacement Port |
| Termination Style | Punchdown |
| Performance Level | Category 6A |
| Material | Polycarbonate (Molded) |
| Wiring Scheme | T568A/T568B |
| Number of Ports | 1 |
| Module Type | Mini-Com |
| Overall Width (In.) | 0.65 |
| Overall Width (mm) | 16.53 |
| Sub Brand | Pan-Net |
| Overall Depth (In.) | 1.16 |
| Overall Depth (mm) | 29.54 |
| Overall Height (In.) | 0.88 |
| Overall Height (mm) | 22.31 |
| Color | Black |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards at swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4 for PoE applications up to 100 W, UL 1863 approved and RoHS Compliant |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
Panduit - DRJ6X88TGBL - Package Information
| UPC | 07498339613 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0083 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.0832 |
