Panduit DTHEH-Q0 | Cable Ties | UPC - 07498378911
Description
Description
Dura-Ty cable ties are used to secure and route cables in outdoor power and communication applications. The acetyl material provides excellent ultraviolet resistance, strength and durability for a long service life. The tie design includes double stainless steel locking barbs to ensure consistent and reliable cable tie operation. Dura-Ty cable ties are available in two cross sections, a range of discrete lengths and cut-to-size rolls for application flexibility. The new Heavy cross section features a robust head design that allows the tie to be tightened over a wide range of angles for a safe and reliable installation and it incorporates a textured strap surface that improves gripping ability. The Extra-Heavy cross section meets Telcordia TR-TSY-000789 guidelines for lashed cable supports. Dura-Ty cable ties along with Panduit cable tie installation tools and stackable aerial cable spacers are the ideal solution for outdoor bundling applications.

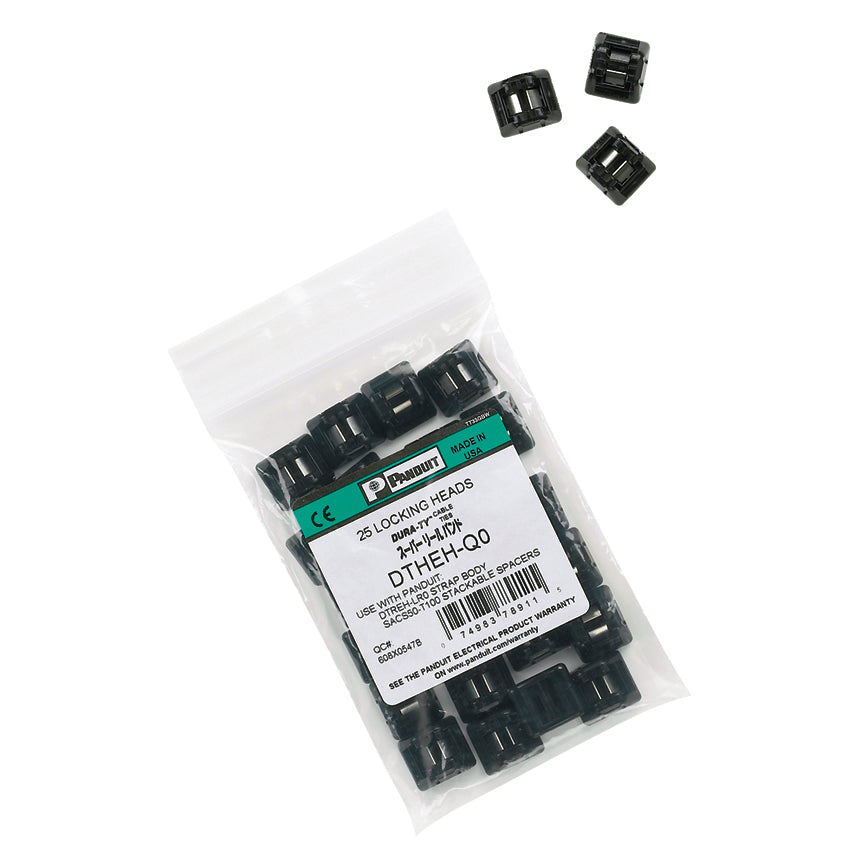

Panduit Dura-Ty Cable Tie Head, Locking, 0.81 in W, Acetal, Black
Features + Benefits
- Black acetyl strap and head material provide 20+ years outdoor life and high impact resistance
- Excellent ultraviolet light, chemical and moisture resistance
- Double stainless steel locking barb provide consistent and predictable holding values
- Convenient reel dispenser pack allows installer to cut size for customized field application, recyclable box has through hole for attaching to belt, plus storage area for bag of heads
- Several pre-cut sizes have lead in style angled tips on pre-assembled straps for easy installation, even with gloved hands, to speed installation
- The durable locking mechanism, complete with double stainless steel locking barb, provides a consistent, reliable connection and high impact resistance and strength
- UV-resistant
Panduit DTHEH-Q0 Key Specs
| Product Type | Cable Ties |
| Color | Black |
| Environment | Outdoor |
| Sub Brand | Dura-Ty |
| For Use With | GS4EH, ST3EH |
| Material | Acetal |
| Resistance Properties | UV Resistant |
| Maximum Installation Temperature (°C) | 0 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 0.81 |
| Overall Length (mm) | 20.6 |
| Body Width (In.) | 0 |
| Body Width (mm) | 0 |
| Body Thickness (mm) | 0 |
Panduit DTHEH-Q0 Data Sheets
| Part Drawings | Standard Expandable Sleeve (SE) GB0239KD | Download and View |
| Compliances | Global Passenger Rail Standards Compliance: WAIS01--WW-ENG | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
