Panduit DV10-250-2K | Reel Smart Disconnect, Yellow, Vinyl, 10-12 A...
Description
Description
Streamline your connections in electrical systems with our vinyl-insulated female disconnect, offering secure, tool-free connections for demanding low-voltage projects.

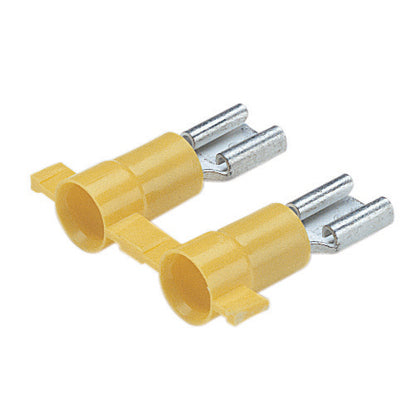

The DV10-250-2K Reel Smart Disconnect is a continuously molded female disconnect with vinyl insulated barrel and a funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The internal wire stop assures proper wire insertion length into the terminal barrel for a higher quality connection. Barrel serrations assure good wire contact and maximum tensile strength.
Panduit Reel Smart Female Disconnect, Vibration Resistant, Series: DV Series, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.23 in Dia Maximum Vinyl Insulation, 221 deg F, Brass, Yellow, Tin Plated, 0.95 in L x 0.29 in W x 0.12 in H, Insulated
Panduit - DV10-250-2K - Features
- Right angle design for use in limited space applications
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
Specifications
Specifications
Panduit - DV10-250-2K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV10-250-2K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | 10 |
| Minimum Wire Size (AWG) | #12 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| UPC | 07498382555 |
Panduit - DV10-250-2K - Videos
| Panduit DV10-250-2K Video 1 | Click to View |
|---|
