Panduit DV10-250-E | Loose Piece Disconnect | UPC - 07498334354

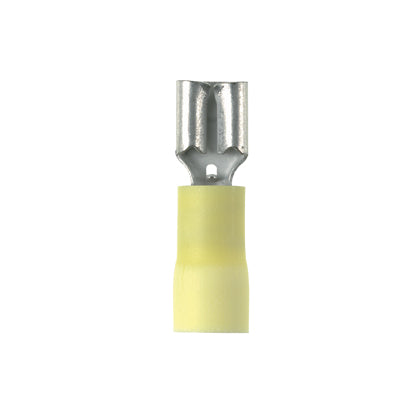

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 1.03" (26.2 mm) long and 0.3" (7.6 mm) wide. The disconnect has a funnel entry barrel configuration and a sleaved barrel. It comes in bags of 20.

---

Panduit Panduit DV10-250-E | Loose Piece Disconnect | UPC - 07498334354 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#10
Maximum Wire Size (AWG)	#10
Minimum Wire Size (AWG)	#12
Minimum Copper Conductor Size (AWG)	#12
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.25
Tab Size (mm)	6.3
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Yellow
Barrel Type	Sleeved Barrel
Flammability Rating	V0
Insulation Diameter (In.)	0.23
Insulation Diameter (mm)	5.8
Maximum Operating Temperature (°C)	150
