Panduit DV14-187B-3K | Disconnects on a Reel | UPC - 07498368610
Regular price
$1,190.44
Unit price
Brand: Panduit
|
SKU:
PAN-DV14-187B-3K
Regular price
$1,190.44
Unit price
Shipping calculated at checkout.
Description
Description

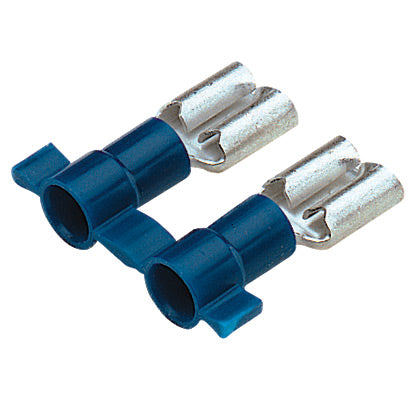

Panduit Reel Smart Disco Female Disconnect, Vibration Resistant, Series: DV-B, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.77 in L x 0.23 in W x 0.1 in H, Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DV14-187B-3K | Disconnects on a Reel | UPC - 07498368610 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Flammability Rating | V0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit DV14-187B-3K | Disconnects on a Reel | UPC - 07498368610 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DV18-187B-3K Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Female Disconnects Vinyl Insulated Part Drawing A41169 | Download and View |
Panduit DV14-187B-3K | Disconnects on a Reel | UPC - 07498368610 Environmental Information
| Panduit's RoHS Statement | Download and View |
