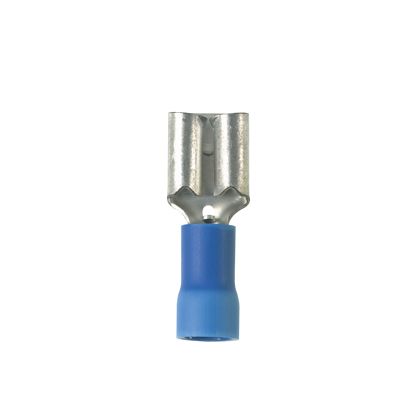

Panduit DV14-187B-C | Pan-Term Loose Piece Disconnect
Description
Description
Streamline your connections in electrical systems with our vinyl-insulated female disconnect, offering secure, tool-free connections for demanding low-voltage projects.
Panduit Pan-Term Female Disconnect, Vibration Resistant Loose Piece, Series: DV-B, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.17 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, TiN Coated, 0.75 in L x 0.23 in W x 0.1 in H, Insulated
Panduit - DV14-187B-C - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
Specifications
Panduit - DV14-187B-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV14-187B-C |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.187 x 0.032 |
| Tab Size (mm) | 4.8 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498346015 |
Panduit - DV14-187B-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
