Panduit DV14-188B-M | Pan-Term Loose Piece Disconnect
Description
Description
Streamline your connections in electrical systems with our vinyl-insulated female disconnect, offering secure, tool-free connections for demanding low-voltage projects.

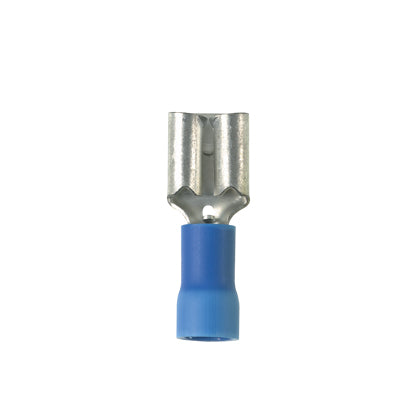

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187 x 0.02" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm2). It is 0.79" (20.1 mm) lo ng and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DV-B, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.162 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.79 in L x 0.23 in W x 0.1 in H, Insulated
Panduit - DV14-188B-M - Features
- Right angle design for use in limited space applications
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
Specifications
Specifications
Panduit - DV14-188B-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV14-188B-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.187 x 0.020 |
| Tab Size (mm) | 4.8 x 0.5 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498382553 |
