Panduit DV14-206B-3K | Reel Smart DV14-206B-3K Disconnects on a Reel

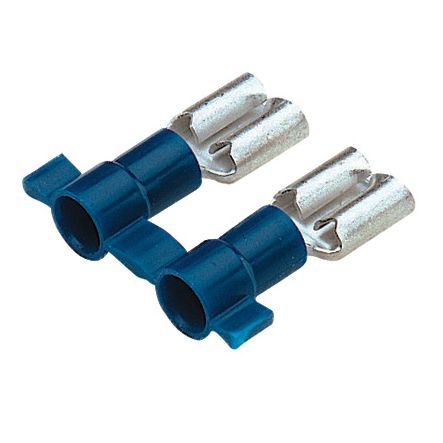

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187/0.205 x 0.02" (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.77" (19.6 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.
Panduit - DV14-206B-3K - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
Specifications
Specifications
Panduit - DV14-206B-3K - Product Categories
- Wire Termination
- Disconnects
Panduit - DV14-206B-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV14-206B-3K |
| Item Description | Reel Smart DV14-206B-3K Disconnects on a Reel |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.205/0.187 x 0.020 |
| Tab Size (mm) | 5.2/4.8 x 0.5 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.17 |
| Insulation Diameter (mm) | 4.3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter (In.) | 0.76 |
| Maximum Wire Insulation Diameter (mm) | 19.3 |
| Overall Height (In.) | 0.11 |
| Overall Height (mm) | 2.8 |
| Overall Length (In.) | 0.77 |
| Overall Length (mm) | 19.6 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Reel |
| Product Type | Disconnect |
| For Use With | Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicator |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable |
