Panduit DV14-206B-C | Loose Piece Disconnect | UPC - 07498346019

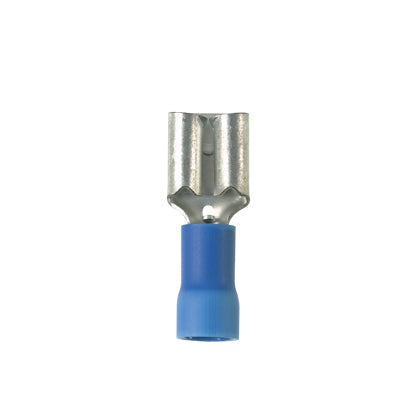

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.187/0.205 x 0.02" (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.75" (19.1 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

---

Panduit DV14-206B-C | Loose Piece Disconnect | UPC - 07498346019 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#16
Maximum Wire Size (AWG)	#16
Minimum Wire Size (AWG)	#14
Minimum Copper Conductor Size (AWG)	#14
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.19
Tab Size (mm)	4.8
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Blue
Flammability Rating	V0
Insulation Diameter (In.)	0.17
Insulation Diameter (mm)	4.3
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
