Brand: Panduit
|
SKU:
DV14-250B-C-EA

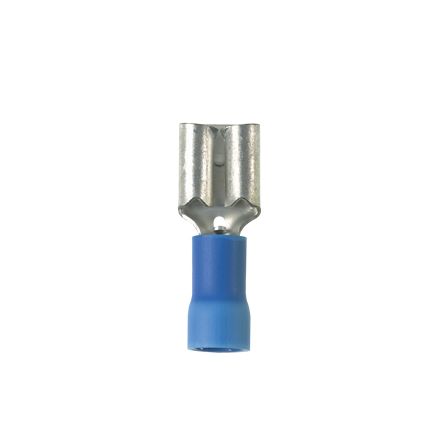

Panduit DV14-250B-C | Pan-Term DV14-250B-C Disconnect, Blue, Vinyl, 14-16 AWG, .25 x .032" Tab, PK100
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DV14-250B-C | Pan-Term DV14-250B-C Disconnect, Blue, Vinyl,...
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
DV14-250B-C-EA
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Panduit DV14-250B-C | Pan-Term DV14-250B-C Disconnect, Blue, Vinyl, 14-16 AWG, .25 x .032" Tab, PK100
Panduit DV14-250B-C Female Disconnect
Panduit DV14-250B-C - DISCONNECT - VINYL INS FEMALE DISCONNECT
Specifications
Specifications
Panduit - DV14-250B-C - Product Categories
- Wire Termination
- Disconnects
Panduit - DV14-250B-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV14-250B-C |
| Item Description | Pan-Term DV14-250B-C Disconnect, Blue, Vinyl, 14-16 AWG, .25 x .032" Tab, PK100 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1/4 |
| Wire Strip Length (mm) | 6.3 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter (In.) | 0.17 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Overall Height (In.) | 0.12 |
| Overall Height (mm) | 3 |
| Overall Length (In.) | 0.81 |
| Overall Length (mm) | 20.6 |
| Overall Width (In.) | 0.29 |
| Overall Width (mm) | 7.4 |
| Tongue Angle | Straight |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable |
Panduit - DV14-250B-C - Package Information
| UPC | 07498382538 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0067 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0337 |
Panduit - DV14-250B-C - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
