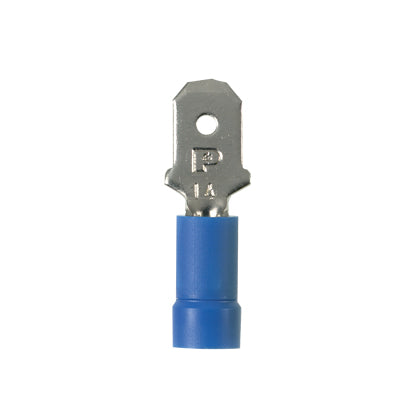

Panduit DV14-250MB-M | Disc, M, BlVn, .25x.032", 16-14AWG, 1000
Description
Description
Our vinyl-insulated male disconnect easily handles electrical projects. The snap-together design simplifies connections and eliminates the need for tools.
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032 in and supports a wire range of 16 to 14 AWG. It is 0.96 in long and 0.25 in wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel.
Panduit Pan-Term Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DV-MB, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.18 in Dia Vinyl Insulation, 221 deg F, Copper, Blue, Nickel Plated, 0.96 in L x 0.25 in W
Panduit - DV14-250MB-M - Features
- Butted seam, assures quick and easy wire insertion, dimpled female socket detent
Specifications
Specifications
Panduit - DV14-250MB-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV14-250MB-M |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 16 |
| Minimum Wire Size (AWG) | #14 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel |
| Color Code | Blue |
| Insulation Diameter (In.) | 0.18 |
| Insulation Diameter (mm) | 4.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Wire Insulation Diameter (In.) | 0.18 |
| Maximum Wire Insulation Diameter (mm) | 4.6 |
| UPC | 07498382226 |
