Panduit DV14-250P-LYY | Loose Piece Disconnect | UPC - 61305675782
Description
Description

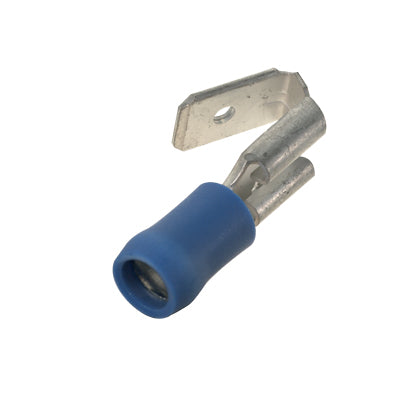

The vibration resistant piggyback disconnect is made of brass and is tin coated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.250 x 0.032 in (6.3 x 0.8 mm) and supports a wire range of 16 to 14 AWG (1.5 to 2.5 sq-mm). It is 0.88 in (22.4 mm) L and 0.29 in (7.4 mm) W. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 50.
Panduit Loose Piece Disconnect, Standard Copper Conductor, 16 to 14 AWG Conductor, 0.25 x 0.032 in Tab, Sleeve Barrel, Piggyback Terminal, 300 VAC, Specifications: Vinyl Barrel Insulation, 194 deg F, Brass, Blue, Tin Coated, 0.88 in L x 0.29 in W
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Combination of female disconnect and male tab allows versatility in points of connection
- Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Panduit DV14-250P-LYY | Loose Piece Disconnect | UPC - 61305675782 Key Specs
| Maximum Wire Size (AWG) | 16 AWG - 14 AWG |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Barrel Type | Sleeved Barrel |
| Sub Brand | Pan-Term |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Overall Width (In.) | 0.29 |
| Overall Width (mm) | 7.4 |
| Product Type | Loose Piece Disconnect |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Combination of female disconnect and male tab allows versatility in points of connection • Multiple connection points allow additional circuits to be added to existing equipment without expensive rework • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • UL Flammability UL 94V-2/HB, maximum insulation temperature 194°F (90°C) • Rated up to 300 V |
Panduit DV14-250P-LYY | Loose Piece Disconnect | UPC - 61305675782 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DR18-205B-C Product Page | Download and View |
| Part Drawings | PiggyBack Disconnect-A41208 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit DV14-250P-LYY | Loose Piece Disconnect | UPC - 61305675782 Environmental Information
| Panduit's RoHS Statement | Download and View |
