Brand: Panduit
|
SKU:
DRC-001914
Panduit DV18-188B-MY | Pan-Term DV18-188B-MY Loose Piece Disconnect
Regular price
$267.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DV18-188B-MY | Pan-Term DV18-188B-MY Loose Piece Disconnect
Regular price
$267.77
Unit price
Description
Description
Panduit DV18-188B-MY | Pan-Term DV18-188B-MY Loose Piece Disconnect

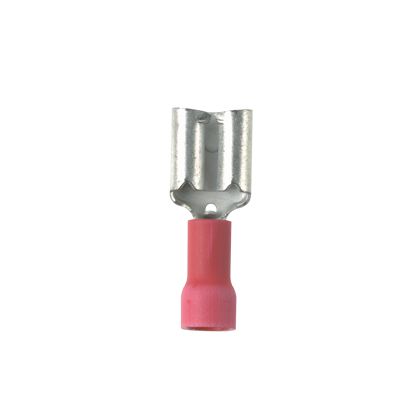

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187 x 0.02" (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Specifications
Specifications
Panduit - DV18-188B-MY - Product Categories
- Wire Termination
- Disconnects
Panduit - DV18-188B-MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV18-188B-MY |
| Item Description | Pan-Term DV18-188B-MY Loose Piece Disconnect |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.187 x 0.020 |
| Tab Size (mm) | 4.8 x 0.5 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 4.3 |
| Overall Height (In.) | 0.1 |
| Overall Height (mm) | 2.5 |
| Overall Length (In.) | 0.76 |
| Overall Length (mm) | 19.3 |
| Overall Thickness (In.) | 0.16 |
| Overall Thickness (mm) | 0.4 |
| Overall Width (In.) | 0.23 |
| Overall Width (mm) | 5.8 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable |
Brand Name - DV18-188B-MY - Package Information
| UPC | 07498340880 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0482 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
