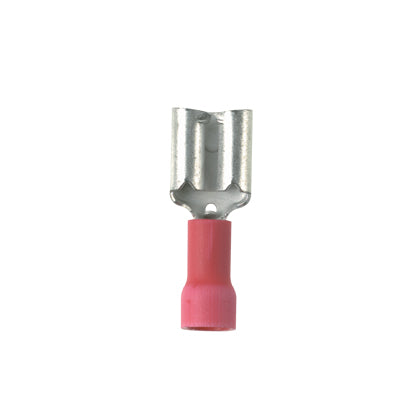

Panduit DV18-205B-MY | Loose Piece Disconnect | UPC - 07498340895

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.187/0.205 x 0.032" (4.8/5.2 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.75" (19.1 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.

---

Panduit Panduit DV18-205B-MY | Loose Piece Disconnect | UPC - 07498340895 Key Specs

Note	DV18-205B-MY replaces DV18-205B-M
Disconnect Type	Female Disconnect
Insulation Material	Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.19
Tab Size (mm)	4.8
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Red
Flammability Rating	V0
Insulation Diameter (In.)	0.15
Insulation Diameter (mm)	3.8
Maximum Operating Temperature (°C)	105
