Streamline your connections in electrical systems with our vinyl-insulated female disconnect, offering secure, tool-free connections for demanding low-voltage projects.

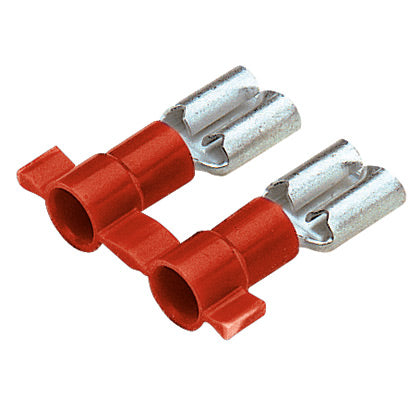

The DV18-250B-3K Reel Smart Disconnect is a continuously molded female disconnect with vinyl insulated barrel and a funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The internal wir e stop assures proper wire insertion length into the terminal barrel for a higher quality connection. Barrel serrations assure good wire contact and maximum tensile strength.
Panduit Reel Smart Female Disconnect, Vibration Resistant, Series: DV-B, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.15 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.83 in L x 0.29 in W x 0.12 in H, Insulated
Panduit - DV18-250B-3K - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
Specifications
Specifications
Panduit - DV18-250B-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV18-250B-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 1 |
| UPC | 07498382117 |
