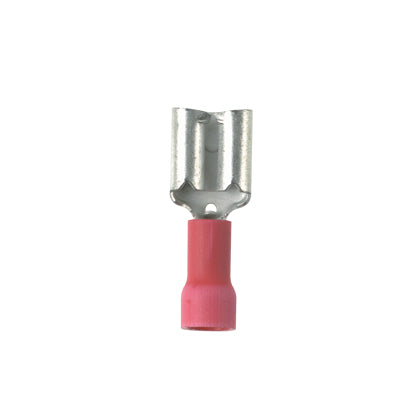

Panduit DV18-250B-E | Loose Piece Disconnect | UPC - 07498336490

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bags of 20.

---

Panduit Panduit DV18-250B-E | Loose Piece Disconnect | UPC - 07498336490 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.25
Tab Size (mm)	6.3
Standards Met	UL Listed,C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Red
Flammability Rating	V0
Insulation Diameter (In.)	0.15
Insulation Diameter (mm)	3.8
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
