Panduit DV18-250B-MY | Pan-Term Disconnect, Red, Vinyl, 18-22 AWG, ...
Description
Description
Streamline your connections in electrical systems with our vinyl-insulated female disconnect, offering secure, tool-free connections for demanding low-voltage projects.

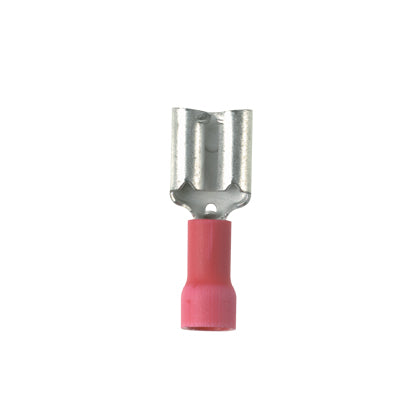

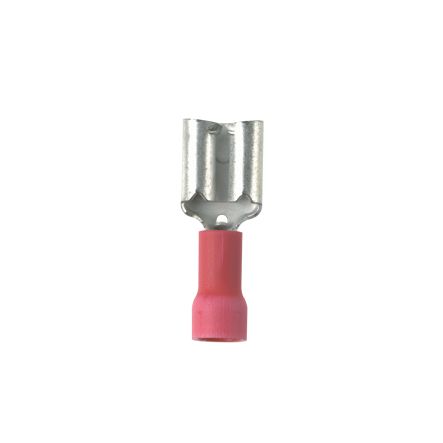

Female Disconnect, vinyl barrel insulated, butted seam, 22 - 18 AWG, .250 x .032 tab size.
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DV-B, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.15 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.81 in L x 0.29 in W x 0.12 in H, Insulated
Panduit - DV18-250B-MY - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- UL Flammability UL 94V-0, maximum insulation temperature 221F (105C)
Specifications
Specifications
Panduit - DV18-250B-MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV18-250B-MY |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498340920 |
