Panduit DV18-250B-MY | Pan-Term Dv18-250B-My Disconnect, Red, Vinyl, 18-22 Awg, 0.25" Tab, Pk1000

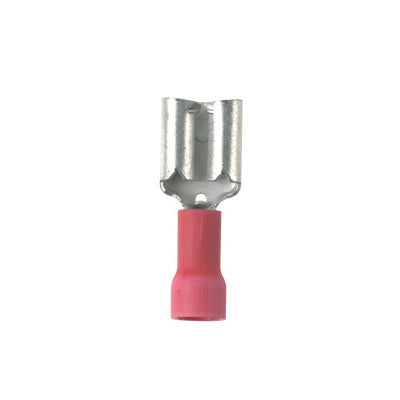

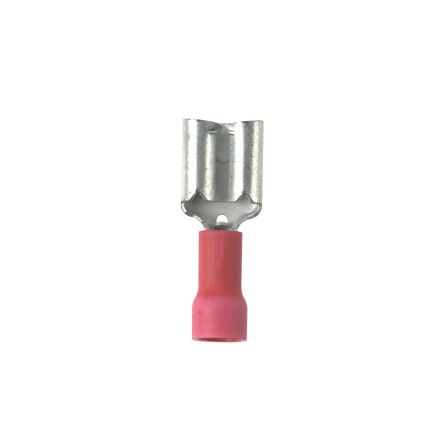

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Panduit - DV18-250B-MY - Features
- Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DV-B, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.15 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.81 in L x 0.29 in W x 0.12 in H, Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
Specifications
Panduit - DV18-250B-MY - Product Categories
- Wire Termination
- Disconnects
Panduit - DV18-250B-MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV18-250B-MY |
| Item Description | Pan-Term Dv18-250B-My Disconnect, Red, Vinyl, 18-22 Awg, 0.25" Tab, Pk1000 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Overall Length (In.) | 0.81 |
| Overall Length (mm) | 20.6 |
| Overall Thickness (In.) | 0.16 |
| Overall Thickness (mm) | 0.4 |
| Overall Width (In.) | 0.29 |
| Overall Width (mm) | 7.4 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable |
| MPN: | DV18-250B-MY |
| Barrel Type: | Butted Seam |
| Color: | Red |
| Conductor Size: | 22 to 18 AWG |
| Conductor Type: | Stranded |
| Dimensions: | 0.81 in L x 0.29 in W x 0.12 in H |
| Finish: | Tin Plated |
| Insulated: | Insulated |
| Material: | Brass |
| Series: | DV-B |
| Specifications: | 9/32 in L Wire Strip, 0.15 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration |
| Tab Size: | 0.25 in W x 0.032 in THK |
| Temperature Rating: | 221 deg F |
| Terminal Type: | Crimp |
| Type: | Vibration Resistant |
| Voltage Rating: | 600 VAC |
