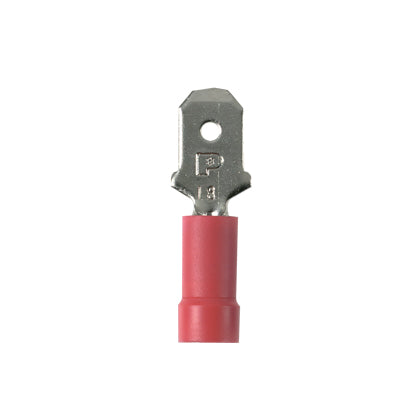

Panduit DV18-250MB-MY | Pan-Term Loose Piece Disconnect
Regular price
$353.55
Unit price
Brand: Panduit
|
SKU:
PAN-DV18-250MB-MY
Regular price
$353.55
Unit price
Description
Description
Panduit DV18-250MB-MY | Pan-Term Loose Piece Disconnect
Our vinyl-insulated male disconnect simplifies electrical connections with secure, tool-free installation for low-voltage projects.
Panduit Pan-Term Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DV-MB, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, 600 VAC, 9/32 in L Wire Strip, 0.154 in Dia Maximum Vinyl Insulation, 221 deg F, Copper, Red, Nickel Plated, 0.98 in L x 0.25 in W
Panduit - DV18-250MB-MY - Features
- Insulation support helps to prevent wire damage in bending applications
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
Specifications
Specifications
Panduit - DV18-250MB-MY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV18-250MB-MY |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94V-0 |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.8 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498341028 |
