Brand: Panduit
|
SKU:
128199GT-GEN
Panduit DV18-250P-LYY | Pan-Term Loose Piece Disconnect
Regular price
$2.55
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DV18-250P-LYY | Pan-Term Loose Piece Disconnect
Regular price
$2.55
Unit price
Description
Description

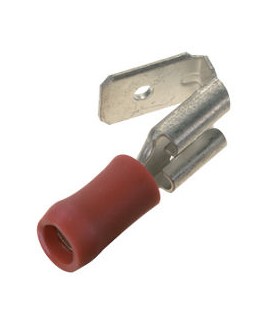

Panduit DV18-250P-LYY | Pan-Term Loose Piece Disconnect
Our vinyl-insulated piggyback disconnect offers multiple connection points for adding circuits, and features a metal sleeve for vibration protection in demanding environments.
Specifications
Specifications
Panduit - DV18-250P-LYY - Package Contents
| UPC | 61305675784 |
|---|---|
| Std. Pkg. Qty. | 50 |
| Std. Pkg. Volume (cf) | 0.0074 |
| Std. Ctn. Qty. | 250 |
| Std. Ctn. Volume (cf) | 0.0368 |
Panduit - DV18-250P-LYY - Specifications
| Disconnect Type | Piggy Back Disconnect |
|---|---|
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Copper Conductor Size | 22-18 AWG |
| Wire Size | 22-18 AWG |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Barrel Type | Funnel Entry |
| Sub Brand | Pan-Term® |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.13 |
| Maximum Wire Insulation Diameter (mm) | 3.3 |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Overall Width (In.) | - |
