Brand: Panduit
|
SKU:
DRC-001912
Panduit DV18-250P-MYY | Pan-Term DV18-250P-MYY Loose Piece Disconnect
Regular price
$720.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DV18-250P-MYY | Pan-Term DV18-250P-MYY Loose Piece Disconnect
Regular price
$720.07
Unit price
Description
Description
Panduit DV18-250P-MYY | Pan-Term DV18-250P-MYY Loose Piece Disconnect

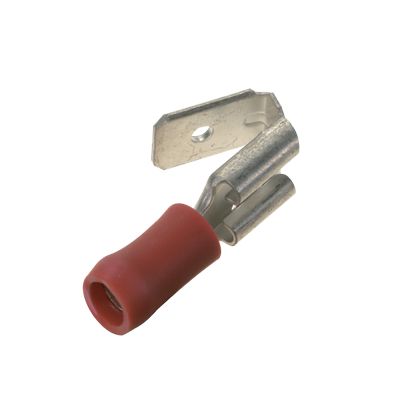

The vibration resistant piggyback disconnect is made of brass and is tin-plated. It is barrel insulated in red vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.88" (22.4 mm) long and 0.29" (7.4 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in boxes of 1000.
Specifications
Specifications
Panduit - DV18-250P-MYY - Product Categories
- Wire Termination
- Disconnects
Panduit - DV18-250P-MYY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DV18-250P-MYY |
| Item Description | Pan-Term DV18-250P-MYY Loose Piece Disconnect |
| Disconnect Type | Piggy Back Disconnect |
| Insulation Material | Vinyl |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Barrel Type | Funnel Entry |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.13 |
| Maximum Wire Insulation Diameter (mm) | 3.3 |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.4 |
| Overall Width (In.) | 0.29 |
| Overall Width (mm) | 7.4 |
| Tongue Angle | Straight |
| Product Type | Disconnect |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Combination of female disconnect and male tab allows versatility in points of connection • Multiple connection points allow additional circuits to be added to existing equipment without expensive rework • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • UL Flammability UL 94V-2/HB, maximum insulation temperature 194°F (90°C) • Rated up to 300 V |
Brand Name - DV18-250P-MYY - Package Information
| UPC | 61305675785 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.5261 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
