Panduit DVF14-206-C | Loose Piece Disconnect | UPC - 07498370289

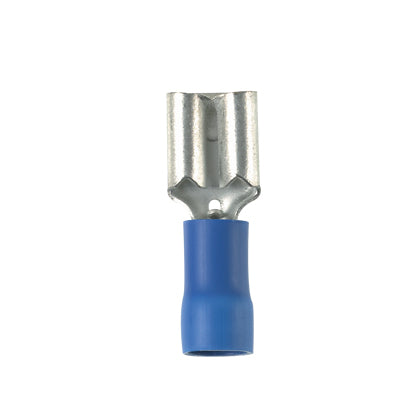

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.76" (19.3 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

---

Panduit Panduit DVF14-206-C | Loose Piece Disconnect | UPC - 07498370289 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Vinyl - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG)	#16
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.21
Tab Size (mm)	5.2
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	300
Base Material	Brass
Finish/Coating	Tinned
Color Code	Blue
Barrel Type	Grip Sleeve
Flammability Rating	V0
Insulation Diameter (In.)	0.16
Insulation Diameter (mm)	4.1
Maximum Operating Temperature (°C)	90
