Brand: Panduit
|
SKU:
10044201

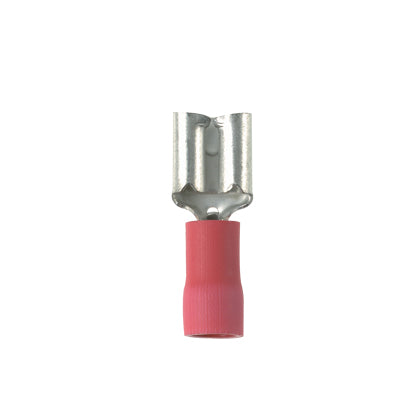

Panduit DVF18-188-CY | Loose Piece Disconnect | UPC - 07498368565
Regular price
$129.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DVF18-188-CY | Loose Piece Disconnect | UPC - 07498368565
Regular price
$129.79
Unit price
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DVF, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Sleeve Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.137 in Dia Maximum Vinyl Insulation, Funnel Entry Barrel Configuration, 194 deg F, Brass, Red, Tin Plated, 0.76 in L x 0.23 in W x 0.1 in H, Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DVF18-188-CY | Loose Piece Disconnect | UPC - 07498368565 Key Specs
| Note | DVF18-188-CY replaces DVF18-188-C |
| Disconnect Type | Female Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Flammability Rating | V0 |
| Insulation Diameter (In.) | 0.14 |
| Insulation Diameter (mm) | 3.5 |
Panduit Panduit DVF18-188-CY | Loose Piece Disconnect | UPC - 07498368565 Environmental Information
| Panduit's RoHS Statement | Download and View |
