Panduit E10-6FB-Q | Fork Terminal | UPC - 07498328014
Regular price
$7.59
Unit price
Brand: Panduit
|
SKU:
10044209
Regular price
$7.59
Unit price
Description
Description

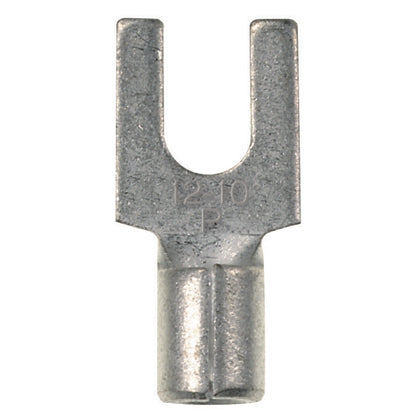

StrongHold Fork Terminal, Non-Insulated, 12 - 10 AWG, #6 Stud Size.
Panduit Panduit E10-6FB-Q | Fork Terminal | UPC - 07498328014 Key Specs
| Fork Type | Standard |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #10 |
| Maximum Copper Conductor Size (AWG STR) | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG SOL) | #12 |
| Minimum Copper Conductor Size (AWG STR) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Stud Size | M3 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
Panduit Panduit E10-6FB-Q | Fork Terminal | UPC - 07498328014 Data Sheets
| Part Drawings | Non Insulated Fork, 12-10 awg | Download and View |
Panduit Panduit E10-6FB-Q | Fork Terminal | UPC - 07498328014 Environmental Information
| Panduit's RoHS Statement | Download and View |
