Brand: Panduit
|
SKU:
10044232

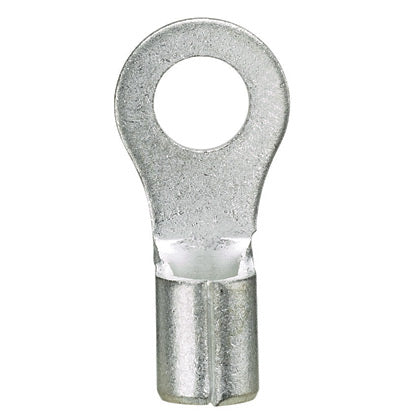

Panduit E14-6RB-Q | Ring Terminal | UPC - 61305636716
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit E14-6RB-Q | Ring Terminal | UPC - 61305636716
Regular price
$6.29
Unit price
Description
Description
StrongHold Ring Terminal, Non-Insulated, 16 - 14 AWG, #6 Stud Size.
Panduit Panduit E14-6RB-Q | Ring Terminal | UPC - 61305636716 Key Specs
| Minimum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°F) | 302 |
| Stud Hole Size (In.) | 11/100 |
| Stud Hole Size (mm) | 3 |
| Stud Size | #6 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
Panduit Panduit E14-6RB-Q | Ring Terminal | UPC - 61305636716 Data Sheets
| Part Drawings | Non Insulated Ring Terminal 16-14 awg | Download and View |
Panduit Panduit E14-6RB-Q | Ring Terminal | UPC - 61305636716 Environmental Information
| Panduit's RoHS Statement | Download and View |
