Brand: Panduit
|
SKU:
1003729

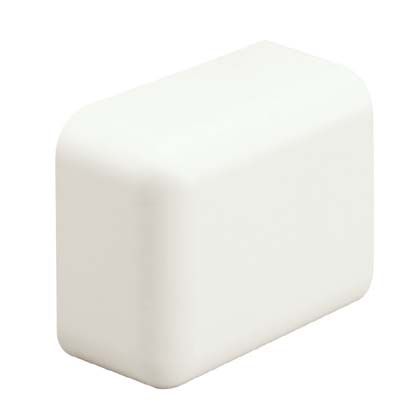

Panduit ECF10IG-X | Low Voltage Fittings | UPC - 07498326252
Regular price
$2.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ECF10IG-X | Low Voltage Fittings | UPC - 07498326252
Regular price
$2.73
Unit price
Description
Description
Panduit Pan-Way End Cap Fitting, Low Voltage, Snap-On Mount, For Use With: Pan-Way LD10 Series Raceway, ABS, International Gray, 2 in L x 1.6 in W x 0.91 in H
Features + Benefits
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance of high performance cabling systems
- one piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Adhesive backing full length adhesive strip allows easy tool-free installation and works well for temporary mounting
- Full selection of fittings and surface mount boxes wide variety of fittings and surface mount boxes available for various LD raceway applications
- Conduit entrance end fitting
- This power rated two piece fitting is designed to accommodate the entrance of 1/2 in conduit or align with knockouts on surface mount electrical boxes
- Cover and base snap together, no hardware is required
- It is power rated two-piece fitting
Panduit ECF10IG-X Key Specs
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | International Gray |
| Fitting Type | End Cap |
| For Use With | LD10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.91 |
| Overall Height (mm) | 23.1 |
| Overall Length (In.) | 2 |
| Overall Length (mm) | 50.8 |
| Overall Width (In.) | 1.6 |
| Overall Width (mm) | 40.6 |
| Application | Pan-Way LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Homes |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
Panduit ECF10IG-X Data Sheets
| Installation Documents | LD Raceway-Fittings-Installation doc | Download and View |
| Part Drawings | Part-Drawing-PDF - ECF10-200 | Download and View |
| Specification Sheets | Pan-Way LD Surface Raceway System SRSP21--WW-ENG | Download and View |
| Line Cards | Surface Raceway Line Card | Download and View |
| Selection Guides | Non-Metallic raceway Quick Reference Guide | Download and View |
