Panduit ECF5EI-E | Surface Raceway, LD5 End Cap, Low Voltage, White
Regular price
$45.69
Unit price
Brand: Panduit
|
SKU:
106759
Regular price
$45.69
Unit price
Description
Description

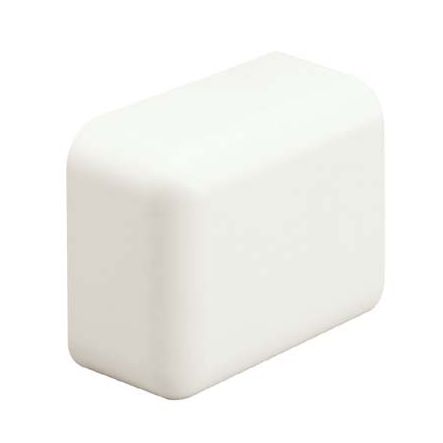

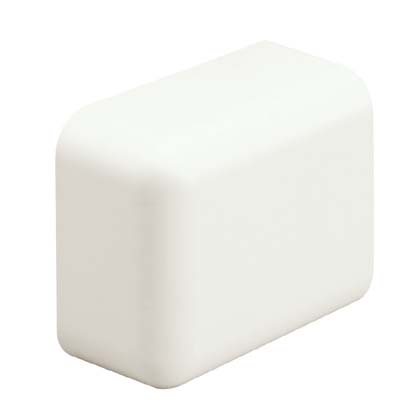

Panduit ECF5EI-E | Surface Raceway, LD5 End Cap, Low Voltage, White
Our end cap fitting provides a clean way to close the open end of a low voltage single channel installation
End cap fitting for use with LD5 raceway, Electric Ivory, ABS, Length 1.62 in.
Panduit Pan-Way End Cap Fitting, Low Voltage, Snap-On Mounting, For Use With: Pan-Way LD5 Series Surface Raceway System, ABS, Electric Ivory, 1.62 in L x 1.08 in W x 0.58 in H Dimensions
Panduit - ECF5EI-E - Features
- One-piece hinged design
- 1 in bend radius control fittings
- Adhesive backing
Specifications
Specifications
Panduit - ECF5EI-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ECF5EI-E |
| Color | Ivory |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Low Voltage Fitting |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Fitting Type | End Cap |
| For Use With | LD5 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards |
| Overall Length (In.) | 1.62 |
| Overall Length (mm) | 41.2 |
| Overall Width (In.) | 1.08 |
| Overall Width (mm) | 27.6 |
| Overall Height (In.) | 0.58 |
| Overall Height (mm) | 14.7 |
| Application | Surface Raceway products provide flexibility for routing, protecting, and consealing Low-Voltage Data, Fiber Optic and Electrical Wiring within any Enterprise Environment |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
| UPC | 07498325187 |
Panduit - ECF5EI-E - Videos
| Panduit ECF5EI-E Video 1 | Click to View |
|---|
