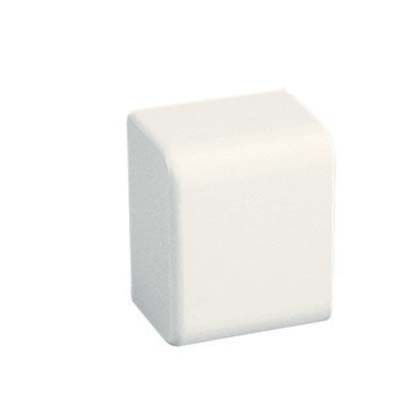

Panduit ECFX3IW-X | Surface Raceway, LDPH3 Power Rated End Cap, Off White
Regular price
$27.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ECFX3IW-X | Surface Raceway, LDPH3 Power Rated End Cap, Off...
Regular price
$27.41
Unit price
Description
Description
Panduit ECFX3IW-X | Surface Raceway, LDPH3 Power Rated End Cap, Off White
Our end cap fitting provides a clean way to close the open end of a power rated single channel installation
End cap fitting for use with LDPH3 and LDS3 raceway, Off White, ABS, Length 0.87 in.
Panduit Pan-Way End Cap Fitting, Power Rated, Snap-On Mounting, For Use With: Pan-Way LD3, LDPH3, LDS3 Surface Raceway System, ABS, Off-White, 0.87 in L x 0.87 in W x 0.47 in H Dimensions
Panduit - ECFX3IW-X - Features
- One bend radius control fittings
- One-piece hinged design
- Adhesive backing
- Non-metallic construction
- Distinct colors
- Full selection of fittings and surface mount boxes
- One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - ECFX3IW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | ECFX3IW-X |
| Color | White |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | End Cap |
| For Use With | LD3, LDPH3 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant. |
| Overall Length (In.) | 0.87 |
| Overall Width (In.) | 0.87 |
| Overall Width (mm) | 22.1 |
| Overall Height (In.) | 0.47 |
| Overall Height (mm) | 11.9 |
| Application | Pan-Way LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Homes |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
| UPC | 07498352870 |
Panduit - ECFX3IW-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
