Brand: Panduit
|
SKU:
10044252

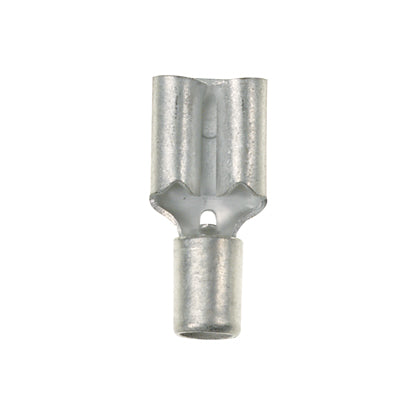

Panduit ED18-250-Q | Loose Piece Disconnect | UPC - 61305636622
Regular price
$7.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit ED18-250-Q | Loose Piece Disconnect | UPC - 61305636622
Regular price
$7.59
Unit price
Description
Description
StrongHold Female Disconnect, Non-Insulated, 22 - 18 AWG, .250 x .032 tab size.
Panduit Panduit ED18-250-Q | Loose Piece Disconnect | UPC - 61305636622 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL Recognized, CSA, UL LISTED E78522, LR31212, E78522 |
| Maximum Voltage (V) | 2000 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
Panduit Panduit ED18-250-Q | Loose Piece Disconnect | UPC - 61305636622 Data Sheets
| Part Drawings | Non-Insulated Female Disconnect 250 | Download and View |
Panduit Panduit ED18-250-Q | Loose Piece Disconnect | UPC - 61305636622 Environmental Information
| Panduit's RoHS Statement | Download and View |
