Brand: Panduit
|
SKU:
10044254

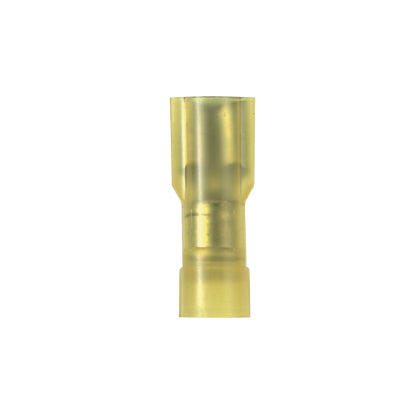

Panduit EDNF10-250FI-Q | Loose Piece Disconnect | UPC - 07498327979
Regular price
$14.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EDNF10-250FI-Q | Loose Piece Disconnect | UPC - 07498327979
Regular price
$14.50
Unit price
Description
Description
Panduit StrongHold Female Disconnect, Fully Insulated Loose Piece, Series: 250, Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Sleeved/Funnel Entry Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.22 in Dia Insulation, 257 deg F, Brass/Nylon, Yellow, Tin Coated, 0.95 in L x 0.36 in W x 0.27 in H Dimensions
Panduit Panduit EDNF10-250FI-Q | Loose Piece Disconnect | UPC - 07498327979 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon-Fully Insulated |
| Insulation Type | Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL Recognized, CSA, UL LISTED E78522, LR31212, E78522 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 125 |
Panduit Panduit EDNF10-250FI-Q | Loose Piece Disconnect | UPC - 07498327979 Environmental Information
| Panduit's RoHS Statement | Download and View |
