Brand: Panduit
|
SKU:
10044255
Panduit EDNF14-187MB-Q | Loose Piece Disconnect | UPC - 61305634227
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EDNF14-187MB-Q | Loose Piece Disconnect | UPC - 61305634227
Regular price
$9.45
Unit price
Description
Description

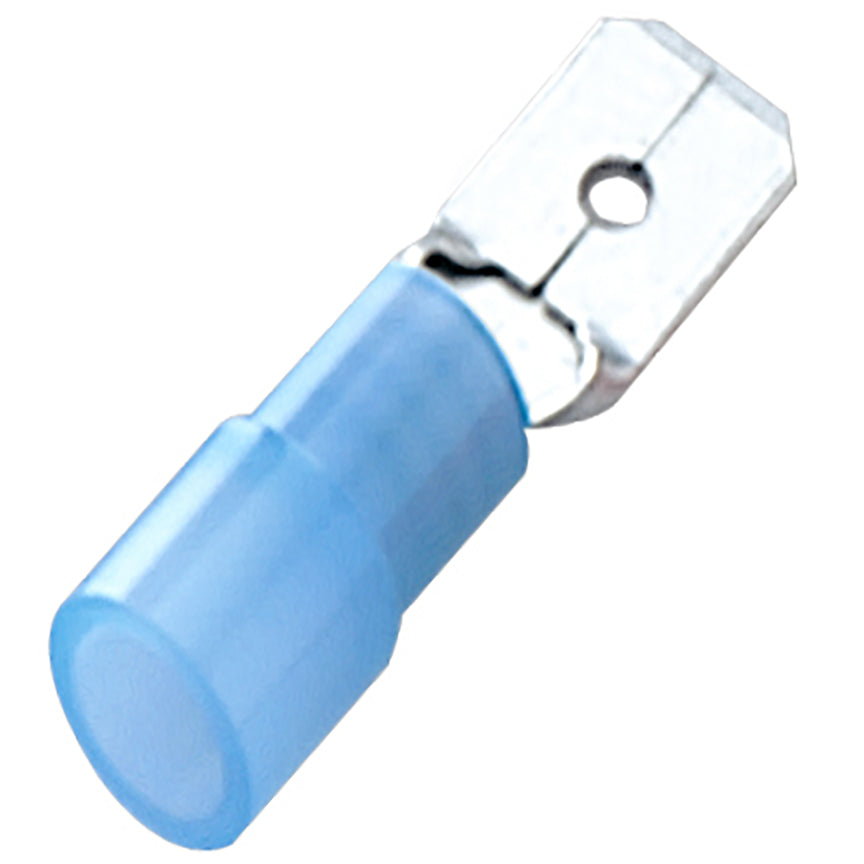

Panduit StrongHold Male Disconnect, Insulated Loose Piece, Copper/Stranded Conductor, 16 to 14 AWG Conductor, 0.187 x 0.032 in Tab, Butted Seam/Funnel Entry Barrel, 300 VAC, Specifications: 9/32 in L Wire Strip, 0.165 in Dia Insulation, 221 deg F, Copper, Blue, TiN Coated, 0.79 in L x 0.187 in W
- Brass stamping, nylon insulation housing material
Panduit Panduit EDNF14-187MB-Q | Loose Piece Disconnect | UPC - 61305634227 Key Specs
| Disconnect Type | Male Disconnect |
| Insulation Material | Nylon-Fully Insulated |
| Insulation Type | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL Recognized, CSA, UL LISTED E78522, LR31212, E78522 |
| Maximum Voltage (V) | 300 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | StrongHold |
Panduit Panduit EDNF14-187MB-Q | Loose Piece Disconnect | UPC - 61305634227 Environmental Information
| Panduit's RoHS Statement | Download and View |
