Brand: Panduit
|
SKU:
10137102

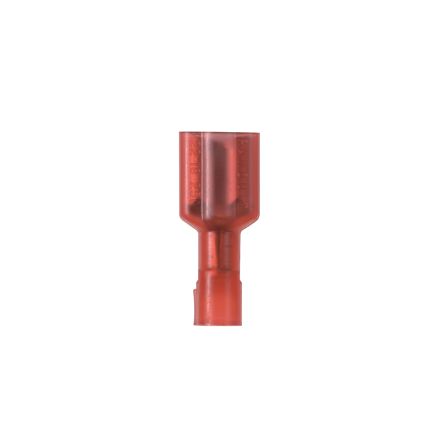

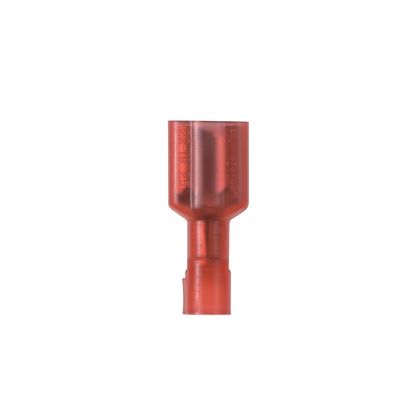

Panduit EDNF18-250FIB-L | StrongHold EDNF18-250FIB-L Loose Piece Disconnect Terminal
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit EDNF18-250FIB-L | StrongHold EDNF18-250FIB-L Loose Piece Di...
Regular price
$1.46
Unit price
Description
Description
Panduit EDNF18-250FIB-L | StrongHold EDNF18-250FIB-L Loose Piece Disconnect Terminal
StrongHold Female Disconnect, nylon fully insulated, 22 - 18 AWG, .250 X .032 tab size.
Panduit EDNF18-250FIB-L Stronghold Female Disconnect18-22awg Vinyl 0.25x0.032tab 600v Red
Specifications
Specifications
Panduit - EDNF18-250FIB-L - Product Categories
- StrongHold Contractor Products
- StrongHold Disconnects
Panduit - EDNF18-250FIB-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | EDNF18-250FIB-L |
| Item Description | StrongHold EDNF18-250FIB-L Loose Piece Disconnect Terminal |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon - Fully Insulated |
| Insulation Type | Nylon - Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL, CSA, E78522, LR31212 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Sub Brand | StrongHold |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.13 |
| Maximum Wire Insulation Diameter (mm) | 3.4 |
| Overall Length (In.) | 0.84 |
| Overall Length (mm) | 21.3 |
| Overall Width (In.) | 0.35 |
| Overall Width (mm) | 8.9 |
| Seam Type | Butted |
| Product Type | Loose Piece Disconnect Terminal |
| For Use With | CT-100A, CT-600-A, CT-1525, CT-2300/ST, CT-2500/L |
| Maximum Voltage (kV) | 0.6 |
Panduit - EDNF18-250FIB-L - Package Information
| UPC | 07498327996 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0103 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1031 |
Panduit - EDNF18-250FIB-L - Videos
| Video 1 | Click to View |
|---|
