Panduit EDV10-11MB-Q | NA | UPC - 61305634156
Regular price
$11.62
Unit price
Brand: Panduit
|
SKU:
10044263
Regular price
$11.62
Unit price
Description
Description

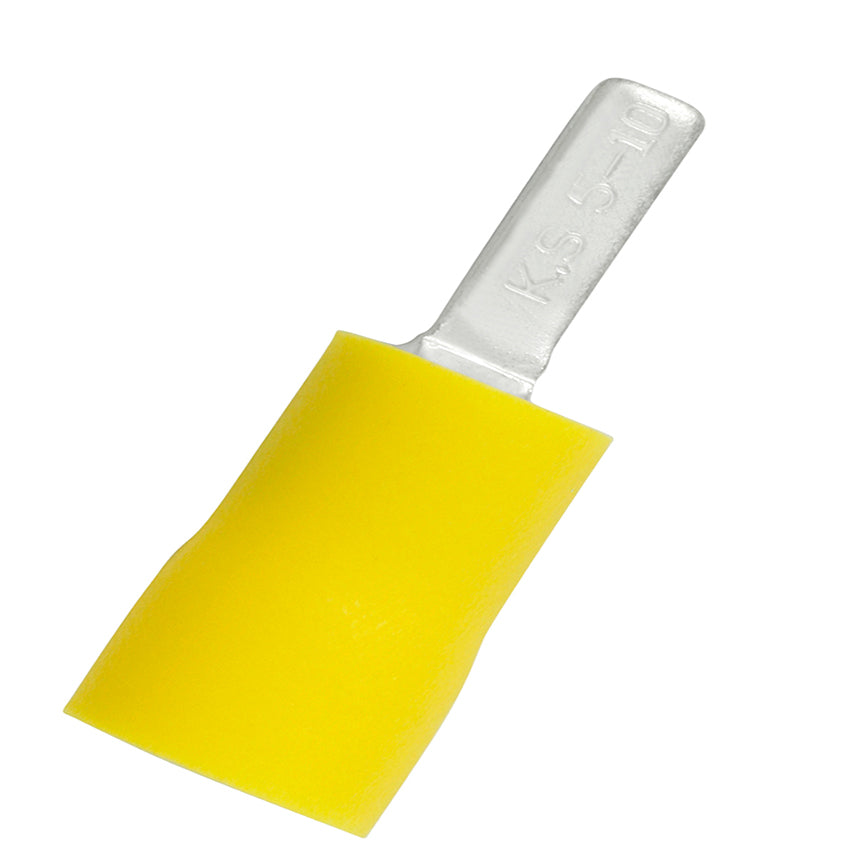

Panduit StrongHold Blade Terminal, Insulated, Solid/Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.39 in Blade Length, 0.11 in Blade Width, 0.91 in Overall Length, 600 VAC, 11/32 in L Wire Strip, 6.1 in Dia Insulation, Beveled/Butted Seam/Serrated Barrel, 221 deg F, Copper/Vinyl, TiN Coated, Yellow
- Standard connection
Panduit Panduit EDV10-11MB-Q | NA | UPC - 61305634156 Key Specs
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.6 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Length (In.) | 0.39 |
| Barrel Length (mm) | 10 |
Panduit Panduit EDV10-11MB-Q | NA | UPC - 61305634156 Environmental Information
| Panduit's RoHS Statement | Download and View |
