Panduit EDV10-250P-Q | NA | UPC - 61305634177
Regular price
$10.35
Unit price
Description
Description

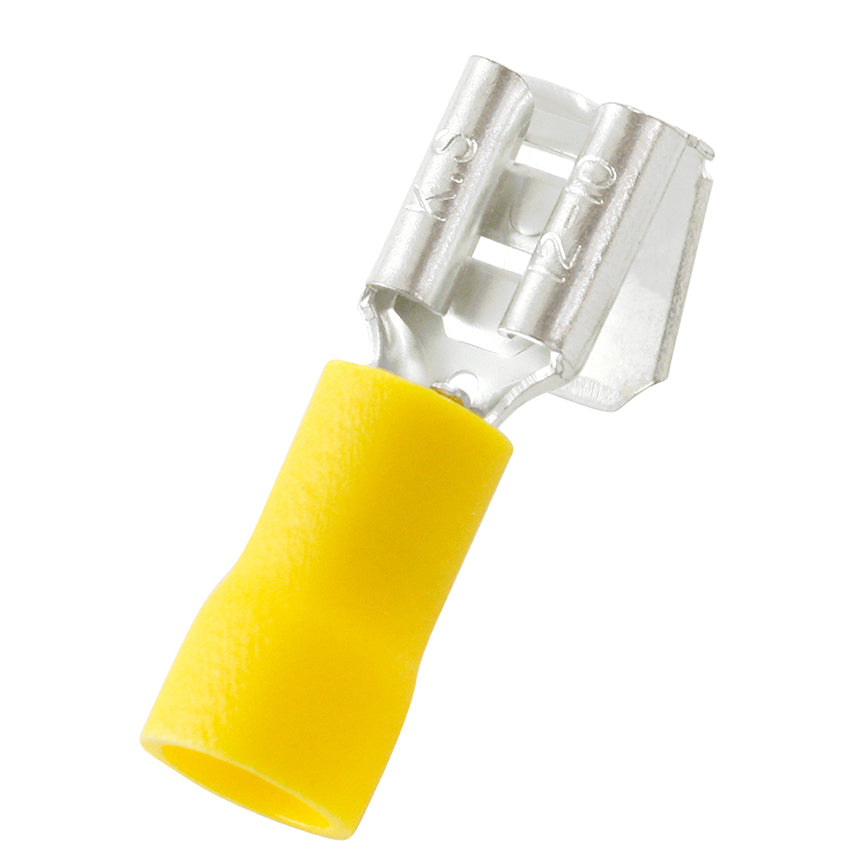

Panduit StrongHold Piggyback Disconnect, Insulated Standard, Stranded Copper Conductor, 12 to 10 AWG Conductor, 0.25 x 0.032 in Tab, Butted Seam/Standard Barrel, 300 VAC, 11/32 in L Wire Strip, 0.204 in Dia Vinyl Barrel Insulation, 167 deg F, Copper, Yellow, TiN Coated, 0.95 in L x 0.26 in W
Panduit Panduit EDV10-250P-Q | NA | UPC - 61305634177 Key Specs
| Disconnect Type | Piggy Back Disconnect |
| Insulation Material | Vinyl - Barrel Insulated |
| Insulation Type | Vinyl - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.34 |
| Wire Strip Length (mm) | 8.6 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | cULus, E78522 |
| Maximum Voltage (V) | 300 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Length (In.) | 0.32 |
| Barrel Length (mm) | 8 |
| Maximum Operating Temperature (°C) | 75 |
Panduit Panduit EDV10-250P-Q | NA | UPC - 61305634177 Environmental Information
| Panduit's RoHS Statement | Download and View |
